Food Hose

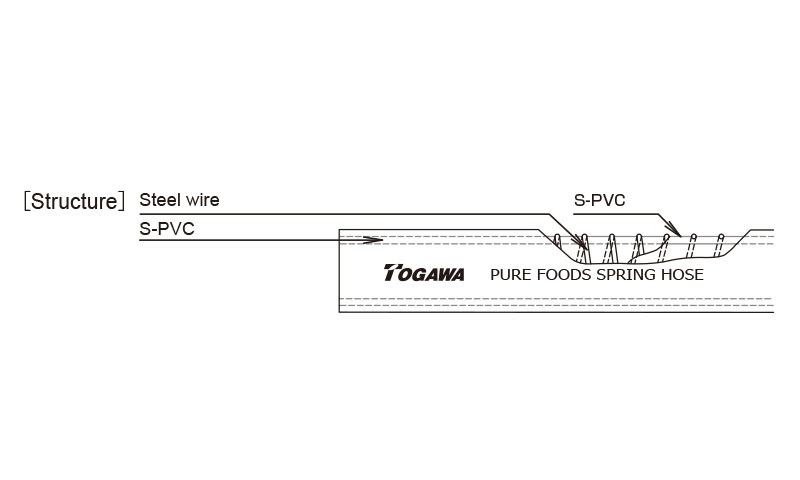

Pure Foods Spring Hose(JHP)
A PVC food hose conforming to JHP (PVC food sanitation assosiation)
- Material
- Flexible PVC product
- Usage
- For conveyance of foods and beverages
- Features
- A safe hose conforming to the JHP specifications (refer to P.9) without harmful substances contained.
- Fluids
-
Foods and beverages
【What are JHP specifications(self-imposed specifications of Japan Hygienic PVC Association）?】
Based on the food sanitation law, the specifications define the recommended
materials, unintended materials for use, and the methods of material and
dissolve tests. The display of JHP logo is allowed for the products approved
by the association.
Pure Foods Spring Hose does not contain any phthalate acid,
which is registered with the JHP specifications and allowed to display the logo.
Specifications:Working temperature limit: Between -5℃ and + 70℃
| Nominal designation | Inner diameter(mm) | Outer diameter(mm) | Regular size(m) | Maximum working pressure MPa at 20℃ | Minimum bending radius(mm) | Regular size weight(kg) |
| PFS-12 | 12.0 | 18.0 | 50 | 0.7 | 60 | 11.5 |
| PFS-15 | 15.0 | 22.0 | 50 | 0.6 | 75 | 16 |
| PFS-19 | 19.0 | 26.0 | 50 | 0.5 | 95 | 22 |
| PFS-25 | 25.0 | 33.0 | 50 | 0.5 | 125 | 27 |
| PFS-32 | 32.0 | 41.0 | 40 | 0.4 | 160 | 31 |
| PFS-38 | 38.0 | 48.0 | 40 | 0.4 | 190 | 39 |
| PFS-50 | 50.0 | 62.0 | 40 | 0.3 | 250 | 59 |
Important notice on food hoses
Odor and taste
Odor and/or taste may be generated in some rare cases by the reaction between the hose and fluids (water, foods, or cleaning agents).
Check the odor and taste before and after using the hose, as there may be great difference between persons.
Important notice on food hoses
Odor and tasteOdor and/or taste may be generated in some rare cases by the reaction between the hose and fluids (water, foods, or cleaning agents).
Check the odor and taste before and after using the hose, as there may be great difference between persons.
